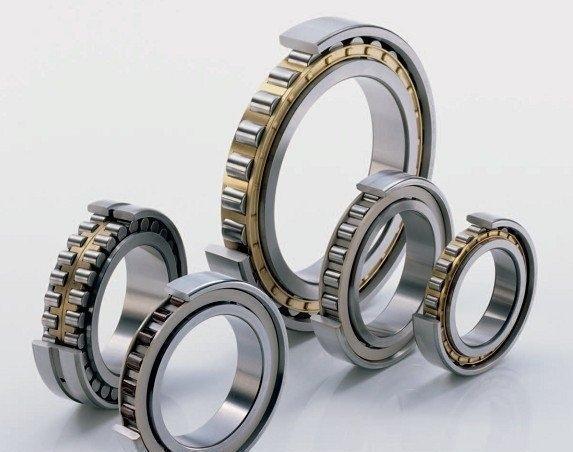

NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing

    Buy cheap NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing from wholesalers

    Buy cheap NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing from wholesalers
    • Buy cheap NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing from wholesalers
    • Buy cheap NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing from wholesalers

    NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing

    Ask Lasest Price
    Brand Name : MONTON
    Model Number : NU302N
    Certification : ISO9001
    Price : USD
    Payment Terms : TT
    Supply Ability : 1000/pcs/week
    Delivery Time : 7-35 days
    • Product Details
    • Company Profile

    NU302N 5 - 100mm Thick Machine Tool Steel Cylindrical Roller Thrust Bearing

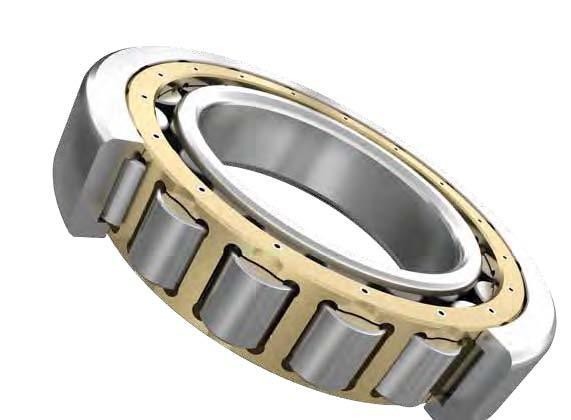

    Cylindrical roller bearing NU302N



    What is a Cylindrical Roller Bearings?

    Cylindrical roller bearings are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.

    The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

    More information

    With the absence of ribs, either the inner or outer ring will move freely so as to adjust to axial movement hence can be used as free side bearings. This enables them to absorb shaft expansion to a certain extent, relative to the housing position.

    NU and NJ type cylindrical roller bearings produce high performance results when used as free side bearings because they possess the required characteristics for that purpose. NF type cylindrical roller bearing also supports the displacement of the axial to a certain extent in both directions and therefore can be used as a free side bearing.

    In applications where heavy axial loads have to be supported, cylindrical roller thrust bearings are the most suitable. This is because they are designed to contain shock loads, are stiff and the axial space required is little. They only support axial loads that are acting in a single direction.

    Detailed applications

    Specifically, our cylindrical roller bearings can be used in industrial transmission, automotive, electric motor, generator sets, elevating machinery, machine tool spindles as well as internal-combustion engines, etc.

    Advantages

    These roller bearings can be separated and are easy to mount as well as dismount.


    Product nameCylindrical roller bearing
    OD(Outer diameter) :20-100mm
    ID(Inner diameter):1-50mm
    B(Thickness) :5-100mm
    Net Weight :Email us, get more detailed - Net Weight parameters
    Material :Bearing steel
    Dynamic Load Rating :Used when calculating dry sliding bearings which are to be dynamically loaded
    Static Load Rating :Defined as the maximum load which one bearing composite bushing
    Max Speed :Determined by criteria that include the form stability of the cage and other
    limiting factors
    Clearance :Defined as the total distance through which one bearing ring can be moved
    relative to the other in the radial direction
    Number of Rows :According to specific product, we can custom-made for you


    BoundaryMass (KG)Bearing NumbersBasicLimited Speed
    Dimenssion (mm)Load Ratings(KN)(rpm)
    dDBapproxTypeCrCorGreaseOil
    1535110.05N20212.710.42000022000
    35110.05NJ20212.710.42000022000
    35110.05NU20212.710.42000022000
    1740120.06N20317.614.61000018000
    40120.06NJ20314.512.81800018000
    2047140.109N20416.613.91700020000
    47140.111NJ20416.613.91700020000
    47140.111NU20416.613.91700020000
    52150.149N30423.119.21400017000
    52150.153NJ30423.119.21400017000
    52150.153NU30423.119.21400017000
    2552150.134N20518.8171400016000
    52150.137NJ20518.8171400017000
    52180.17NJ2205V35.329.41200025000
    52150.137NU20518.8171400016000
    62170.235N30531.527.71200014000
    62170.241NJ30531.527.71200014000
    62170.241NU30531.527.71200014000
    62240.37NJ2305V6772.7720010000
    3062160.203N20624.923.31200014000
    62160.207NJ20624.923.31200014000
    62160.207NU20624.923.31200014000
    72190.35N30638.5351000012000
    72190.358NJ30638.5351000012000
    72190.358NU30638.5351000012000
    3572170.289N20735.5341100012000
    72170.295NJ20735.5341100012000
    72170.295NU20735.5341100012000
    80210.451N30749.547900011000
    80210.461NJ30749.547900011000
    80210.461NU30749.547900011000
    80210.536NUP307V77.278.61000023000
    4080180.37N20843.543940011000
    80180.387NJ20843.543940011000
    80180.378NU20843.543940011000

    Different Characteristics for Different Cylindrical Roller Bearings:

    N

    The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.

    NU

    The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.

    NJ

    The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore

    suitable for the axial location of a shaft in one direction.

    NF

    The outer ring has one integral flange and the inner ring two integral flanges.

    NP

    The outer ring has one integral flange and one non-integral flange in the form of a loose flange ring and the inner ring two integral flanges.

    NUP

    The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.

    RN

    No outer ring and the inner ring two integral flanges.


    Welcome here if you have any demands.
