SX011824 high precision crossed roller bearing manufacturer

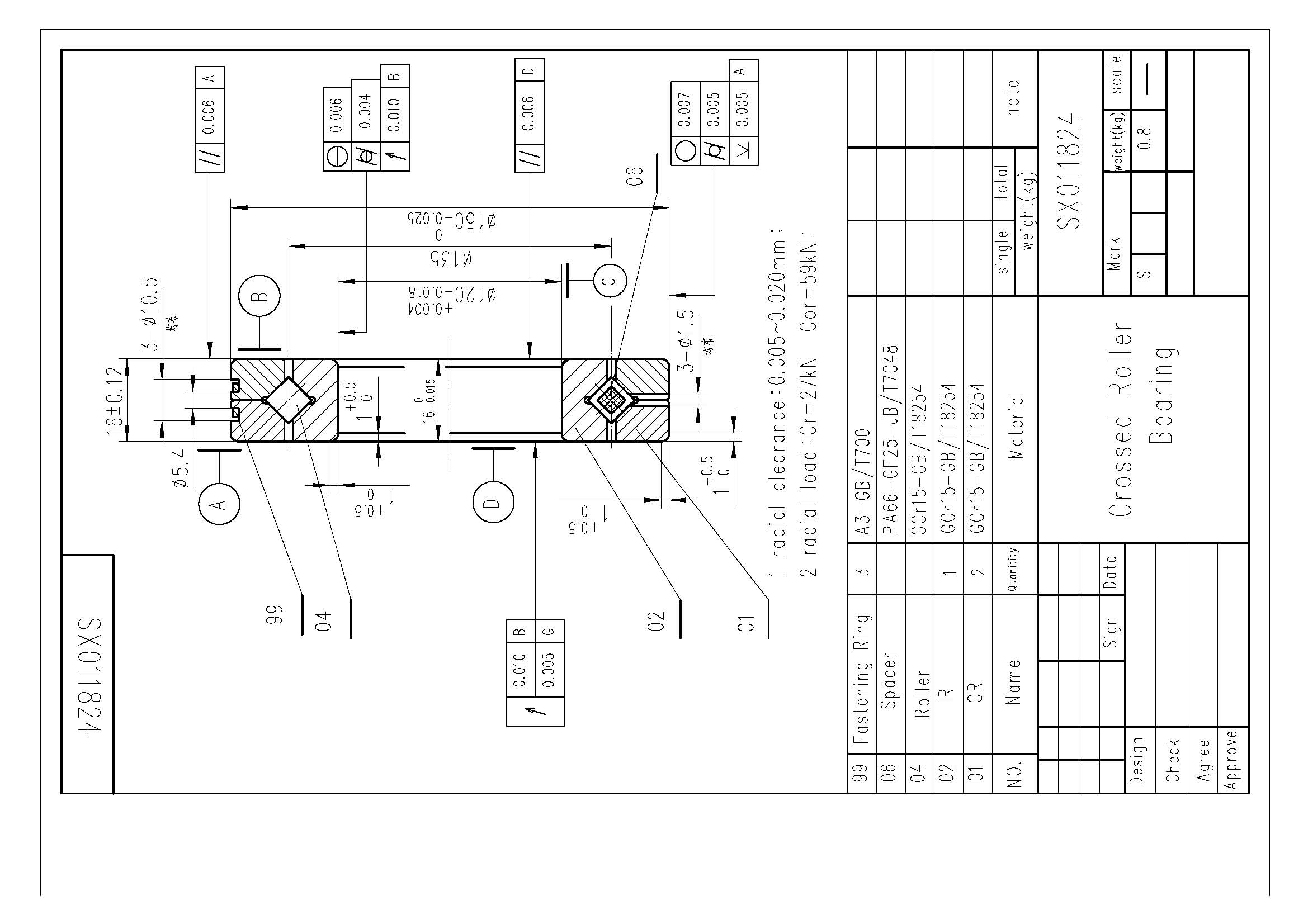

SX011824 Crossed roller bearing

Crossed roller bearing

di	120 mm	Tolerance: K6
di	120 mm	+0,004/-0,018
Da	150 mm	Tolerance: h6
Da	150 mm	0/-0,025
H	16 mm	Section height of bearing
H	16 mm	Tolerance: +/-0,06

Di	135,6 mm
DM	135 mm
da	134,4 mm
h	16 mm	Height of individual ring
		Tolerance: E8
		0/-0,01
rmin	1 mm
S	1,5 mm	Lubrication hole: 3 holes spaced evenly around the circumference
m	0,8 kg	Mass
	0,010 mm	Running accuracy, radial
	0,010 mm	Running accuracy, axial
sr min	0,005 mm	Min. radial bearing clearance
sr max	0,020 mm	Maximum radial bearing clearance
sk min	0,010 mm	Min. axial tilting clearance
sk max	0,04 mm	Maximum axial tilting clearance
RLOmax	0,004 mm	Low clearance: Radial clearance
RLOmax	0,008 mm	Low clearance: Preload
VSPmin	0,005 mm	Min. bearing preload
VSPmax	0,020 mm	Maximum bearing preload
Ca	39500 N	Basic dynamic load rating, axial
C0a	140000 N	Basic static load rating, axial
Cr	28000 N	Basic dynamic load rating, radial
C0r	69000 N	Basic static load rating, radial
C0r	69000 N	(for radial load only)
nG Öl	1130 1/min	Limiting speed for oil lubrication with normal clearance
nG Fett	565 1/min	Limiting speed for grease lubrication with normal clearance
nG Öl	565 1/min	Limiting speed for oil lubrication with preload
nG Fett	280 1/min	Limiting speed for grease lubrication with preload
	61824	Dimensions identical to ISO dimension series 18

SX011824 crossed roller bearing

SX series crossed roller bearings
Identification number	Main dimensions						Basic load rating(axial)		Basic load rating(radial)		Weight
							Ca	Coa	Cr	Cor	Weight
	d	D	Dpw	B B1	S	r	kN	kN	kN	kN	kg
SX011814	70	90	80	10	1.2	0.6	18	60	12	30	0.3
SX011818	90	115	102	13	1.2	1	26	96	17	47	0.4
SX011820	100	125	112	13	1.2	1	28	106	18	52	0.5
SX011824	120	150	135	16	1.5	1	41	153	26	75	0.8
SX011828	140	175	157	18	1.5	1.1	64	237	41	116	1.1
SX011832	160	200	180	20	1.5	1.1	69	272	44	133	1.7
SX011836	180	225	202	22	2	1.1	98	381	63	187	2.3
SX011840	200	250	225	24	2	1.5	106	425	68	208	3.1
SX011848	240	300	270	28	2	2	149	612	95	300	5.3
SX011860	300	380	340	38	2.5	2.1	245	1027	156	504	12
SX011868	340	420	380	38	2.5	2.1	265	1148	167	563	13.5
SX011880	400	500	450	46	2.5	2.5	385	1699	244	833	24
SX0118/500	500	620	560	56	2.5	3	560	2538	355	1244	44

china crossed roller bearing manufacturer

The Brief Description of Cross Roller Bearings:

Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.

Bearing features:

1. High precision: precision at P4, P2.

2. High rigidity: this series bearings are with preload.

3. High load capacity: this series bearings can support axial load, radial load, and tilting load.

4. Small volume: this series bearings can save space for the machine.

Cross Bearing Advantages:

1. with excellent rotational accuracy

2. Installing simplifies operation

3. Bear large axial and radial loads

4.Significant savings in installation space

5. High speed capability

6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to changes .

7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing

8. Optimization of preload, rigidity, high precision guide rollers running

9. Carburizing steel provides excellent impact resistance and surface abrasion resistance

10. Simple but adequate lubrication
