    241/600 ECAK30/W33 Double Row Spherical Roller Bearing / High Speed Roller Bearings

    Ask Lasest Price
    Brand Name : MONTON
    Model Number : 241/600 ECAK30/W33
    Price : USD
    Delivery Time : 7-35 days
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 10000PCS/WEEK
    • Product Details
    • Company Profile

    241/600 ECAK30/W33 Double Row Spherical Roller Bearing / High Speed Roller Bearings



    241/600 ECAK30/W33 Double Row Spherical Roller Bearing / High Speed Roller Bearings

    241/600 ECAK30/W33

    241/600 ECAK30/W33 Double Row Spherical Roller Bearing / High Speed Roller Bearings241/600 ECAK30/W33 Double Row Spherical Roller Bearing / High Speed Roller Bearings

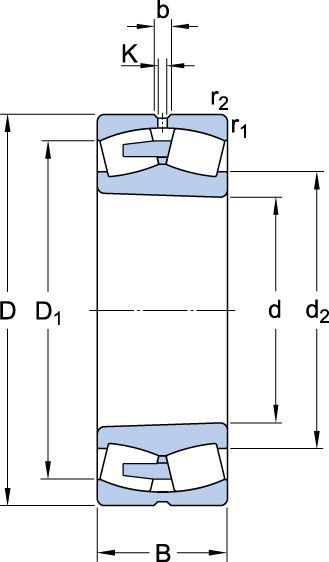

    d600mm
    D980mm
    B375mm
    d2702mm
    D1845mm
    b22.3mm
    K12mm
    r1,2min.7.5mm

    Tapered bore, taper 1:30

    Damax.948mm
    ramax.6mm

    Calculation data
    Basic dynamic load ratingC13522kN
    Basic static load ratingC023600kN
    Fatigue load limitPu1460kN
    Reference speed200r/min
    Limiting speed300r/min
    Calculation factore0.37
    Calculation factorY11.8
    Calculation factorY22.7
    Calculation factorY01.8
    Mass
    Mass bearing1185kg

    Current Code:241/600 ECA/W33 or 241/600 ECAK30/W33 241/600 ECC/W33 241/600 ECCK30/W33 Dimension:600x980x375 mm Number of roller: Double row Weight:1200 kgs The cage type: two window-type steel cages or machined cage of brass or steel The forging material:GCr15SiMn GCr15 The delivery time:20-30 days The package:standard export wooden case or carton boxes The inner ring of spherical roller bearings have two raceways, outer raceway is a part of a sphere, whose curvature center is on the axis of bearings. This type of bearings possesses self-aligning performance, allowing the misalignment of shaft, and can also be used under certain permanent misalignment. These bearings are able to carry higher radial loads, as well as certain axial loads, but can’t be used to carry pure axial loads. The osculation between rollers and raceways is high, and friction is higher than cylindrical roller bearings. Therefore, the limiting speed is lower. This type of bearings is especially suitable to the heavy or vibrating load applications. The type 20000C bearings have symmetrical rollers and pressed steel cages, no rib on inner ring, rollers are longer, load carrying capacity is high, and rollers are guided by a floating guide ring. The type 20000CC bearings are the modified type to type 20000C, the friction between rollers and raceway is decreased, load carrying capacity is enhanced. The type 20000CA bearings adopt symmetrical spherical rollers and machined solid cages, they have floating guide ring and integral ribs on inner rings. The type 20000TN1 bearings use symmetrical rollers and nylon molded cages, no integral ribs and floating guide ring on inner ring, the cages are guided by rollers. The type 20000CC, 20000CA and 20000TN1 bearings are developed in recent years and their internal design are optimized, should give priority to be used. Spherical roller bearings are primarily used in the applications, such as rolling mills, paper-making, power transmitting equipments and ship mechanics, gearbox, vibratory,Metallurgical Mining and construction Fluid machinery Material handling Industrial gearboxes Textile industry Railways Energy Rigid stranders Tubular stranders Bow skip stranders Double Twist Bunchers Drum Twister Stranders Planetary stranders
