Bearing
designations | Boundary dimensions | Load rating | Linited speed | Weight |
| d | D | B | r | R | a | Cr | Co | Grease | Oil | kg |
| mm | | | | | ≈ | KN | r/min | ≈ |
| 724C | 4 | 13 | 5 | | | | 1330 | 510 | 88000 | 93000 | 0.0032 |

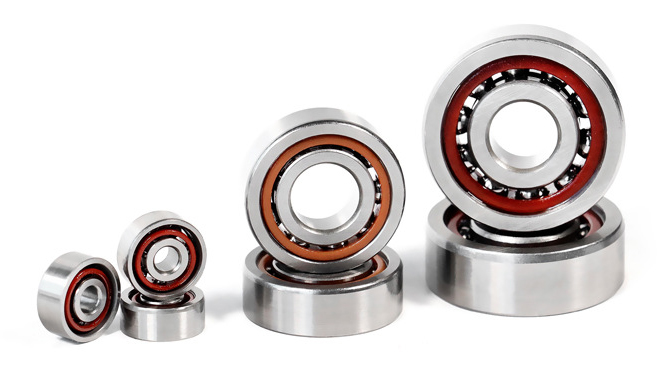

Miniature angular contact ball Bearings also known as small
bearings or micro bearings,MONTON Miniature angular
contact ball bearings are designed to operate in applications that require compactness, low friction, and high
rotational
precision. Miniature angular Contact or Spindle bearings fall
between 3mm inner diameteand 25mm inner diameter.
Spindle bearings are single-row angular contact bearings with a
nominal contact angle of 15° (C) or 25° (E). They can
be subjected to both radial and (in one direction) axial loads. The
direction of the axial load is shown by a “V” marking
on the outer ring. Miniature spindle ball bearings are suitable for applications requiring precision while carrying high load
combined with high speed.
Miniature bearings are used in many applications, such as Linear
transmission equipment,Machine tool workpiece shaft
and grinding wheel shaft,High speed electric shaft (wood carving, stone carving, etc.),Planetary reducer,Drill
head shaft,
Servo motor, drone, automatic production line,5G base station small
fan, motor production line winding, activity monitoring
Control probe Precision Measuring Instruments 3D Printer ,Aerospace
etc.
MONTON miniature angular contact ball Bearings list:
7000Series(C ,AC and A contact angle):
Open : 7 0 5 ,7 0 6 ,7 0 7 ,7 0 8 , 7 0 9 ,7 0 0 0 ,7 0 0 1 ,7 0 0
2 ,7 0 0 3 ,
7 0 0 4 ,7 0 0 5 ,7 0 0 6 ,7 0 0 7 , 7 0 0 8 ；
Sealed: 7 0 6 - Z Z ,7 0 8 - 2 R S ,7 0 0 0 - 2 R S ,7 0 0 1 - 2 R
S ,7 0 0 2 - 2 R S ,
7 0 0 3 - 2 R S ,7 0 0 4 - 2 R S ,7 0 0 5 - 2 R S ,7 0 0 6 - 2 R S
,7 0 0 7 - 2 R S ,
7 0 0 8 - 2 R S .
7200Series(C ,AC and A contact angle):Open:
7 2 3 ,7 2 4 ,7 2 5 ,7 2 6 ,7 2 7 , 7 2 8 ,7 2 9 ,7 2 0 0 ,7 2 0 1
,7 2 0 2 ,
7 2 0 3 ,7 2 0 4 ,7 2 0 5 ,7 2 0 6 ,7 2 0 7 ,7 2 0 8 ,7 2 0 9 ,7 2
1 0 ,7 2 1 1 ,7 2 1 2 ；
Sealed: 7 2 0 2 - 2 R S ,7 2 0 5 - 2 R S ,7 2 0 6 - 2 R S .
71800Series(C ,AC and A contact angle):
Open: 7 1 8 0 0 ,7 1 8 0 1 ,7 1 8 0 2 , 7 1 8 0 3 ,7 1 8 0 4 ,7 1 8
0 5 , 7 1 8 1 2 ,
7 1 8 1 6 ；
Sealed: 7 1 8 0 0 - 2 R S ,7 1 8 0 1 - 2 R S , 7 1 8 0 2 - 2 R S ,7
1 8 0 3 - 2 R S ,
7 1 8 0 4 - 2 R S ,7 1 8 0 5 - 2 R S
71900Series(C ,AC and A contact angle):
Open: 7 1 9 / 4 ,7 1 9 / 5 ,7 1 9 / 6 , 7 1 9 / 7 ,7 1 9 / 8 ,7 1 9
/ 9 ,7 1 9 0 0 ,
7 1 9 0 1 ,7 1 9 0 2 ,7 1 9 0 3 ,7 1 9 0 4 , 7 1 9 0 5 ；
Sealed: 7 1 9 0 0 - 2 R S ,7 1 9 0 1 - 2 R S ,7 1 9 0 2 - 2 R S
Our normal stock items:
7 0 6 ,7 0 8 ,7 0 9 ,7 0 0 0 ,7 0 0 1 ,7 0 0 2 ,7 1 9 / 6 ,7 1 9 / 8 ,71 9 0 0 ,7 2 9
MONTON Miniature Angular Contact ball bearings have following
characterizes:
1.Precision level: P4 (ABEC7)
2.Rings:Rings made Gcr15 bearing steel,440C Stainless or 52100
Chromium steel;
3.Balls:Steel or ceramic balls;
4.Cage:Solid retainer made from fiber-reinforced phenolic resin,
peek;
5.Contact angle:15° (C) or 25° (E) contact angles
6.Paired with three predefined preload classes (L, M, or S) or to a
customer request;
7.Oil or grease lubrication;
8.Open and seales both available;
9.Cleanroom assembly, lubrication, and packaging.
Miniature angular contact bearings are critical components in
high-speed and high-precision applications. Their design
and working principles enable them to handle both axial and radial loads. Depending upon the bearing
material specified,
they have excellent performance characteristics in harsh
environments.
The choice of material and design of the bearing determine the load
capacity and speed rating of the bearing. With their
small size and high load capacity, miniature angular contact bearings play a crucial role in many
industrial and medical
applications.
